2.3.6 The View Menu
The View menu lets you access object attributes, turn the Hyperwave header and
footer on or off, or view a link map.
The View menu contains the following items:
- Attributes: Lets you view the attributes of any object (see
page
68 for editing attributes).
- Header/Footer off: This switches on/off the Hyperwave header and
footer
in the default user interface.
- Link Map: Generates a map of incoming and outgoing links for any
object.
- Notes: Allows you to view all existing notes for a document.
It
is possible to generate a link map for any collection or document. The link map
displays incoming and outgoing links for the object (see Figure 72). All links
associated with the object are shown, including parent collections, reference
links which point to the object and annotation links to the object on the
Into Document list, and children objects and reference links that
originate in the object on the From Document list.
GENERATING A LINK MAP
- Log in to the server by clicking on Login.
- Click on Authoring to switch to authoring mode.
- Select the checkbox next to the document or collection for which you want
to generate a link map.
- Select View->Link Map.

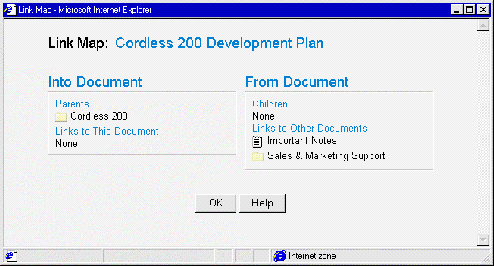

Figure 72: Viewing a document's Link Map
It
is possible to list all existing notes for a document and to view any of those
notes, without displaying the original document. This is particularly useful
for viewing notes attached to document types that cannot be opened in the
browser window.
To view the notes attached to a document:
- Log in to the server by clicking on Login.
- Click on Authoring to switch to authoring mode.
- Select the checkbox next to the document for which you wish to view the
existing notes.
- Select ViewàNotes. A dialog box appears listing all the
notes available for this document.
- Double click on the note you wish to view. This will be displayed in the
browser window, and the Notes dialog box will remain open to allow you
to choose subsequent notes for viewing.
- Click on the OK button to close the Notes dialog box, and
return to the collection listing by clicking on the Up One Level button, or on
the Back button in your browser.
|
|
